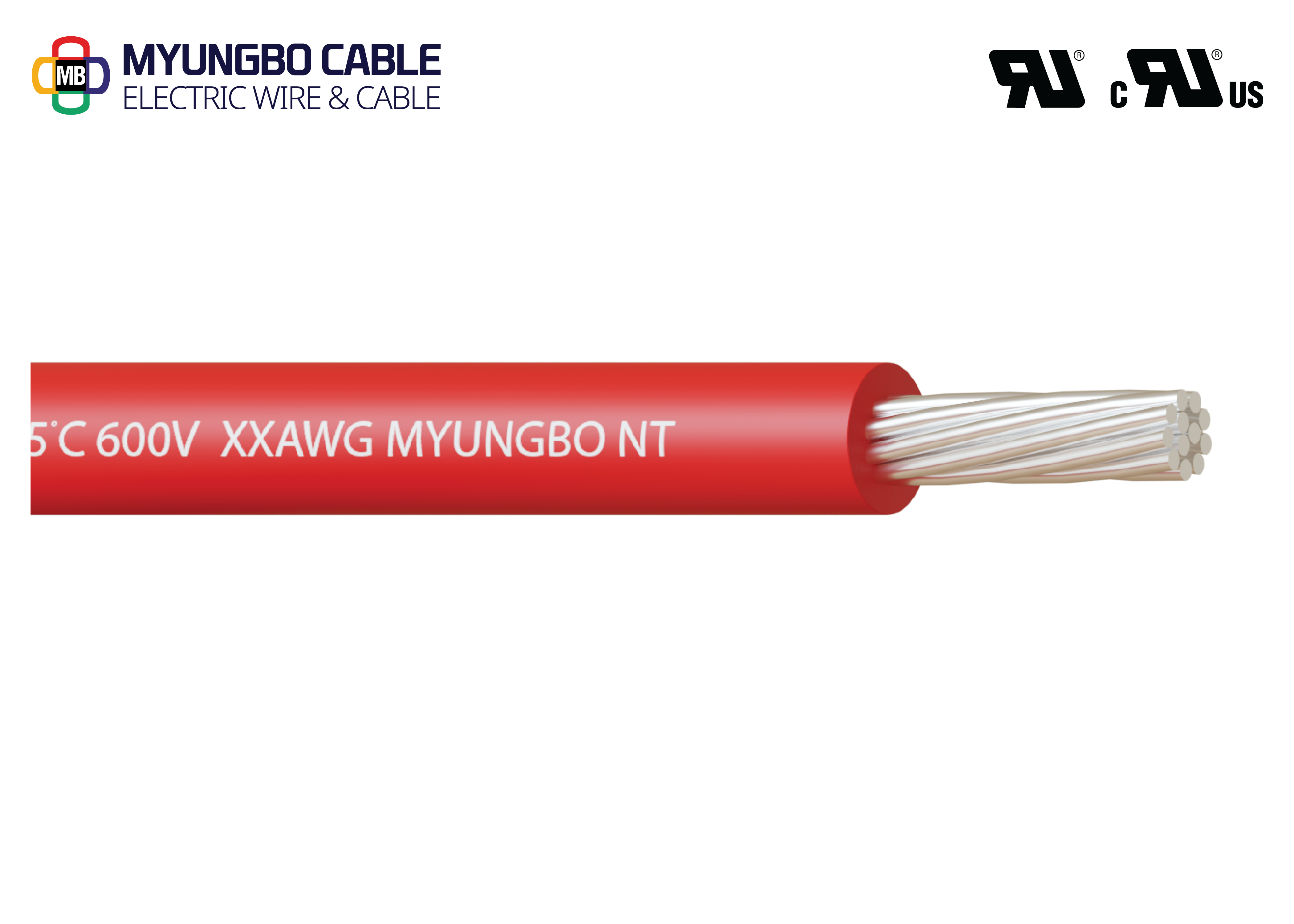

ListAWM 1015 STYLE

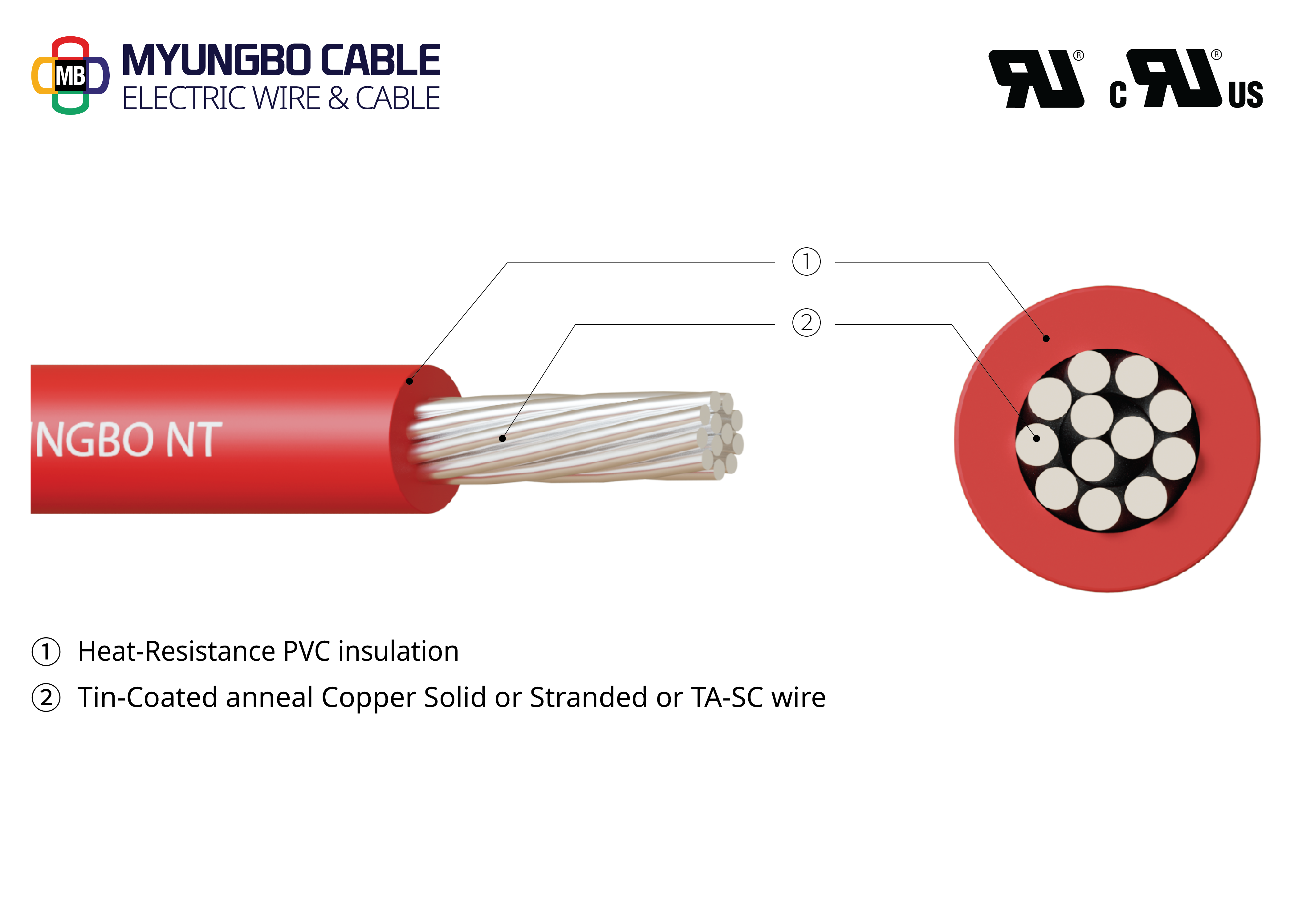

Single conductor with extruded insulation
- Standards
-
UL Subject 758
UL Standard 1581
- Product Use
-
Internal Wiring of Appliances; or Internal Wiring of Appliances where exposed to oil a temperature not exceeding 60°C or 80°C.
- Characteristic
-
- Rating Voltage: 600Vac, 750Vdc
- Flammability: VW-1 / FT1 PASS
- Product Range: 30AWG - 2000KCMIL
- Package: Rolls or Drums

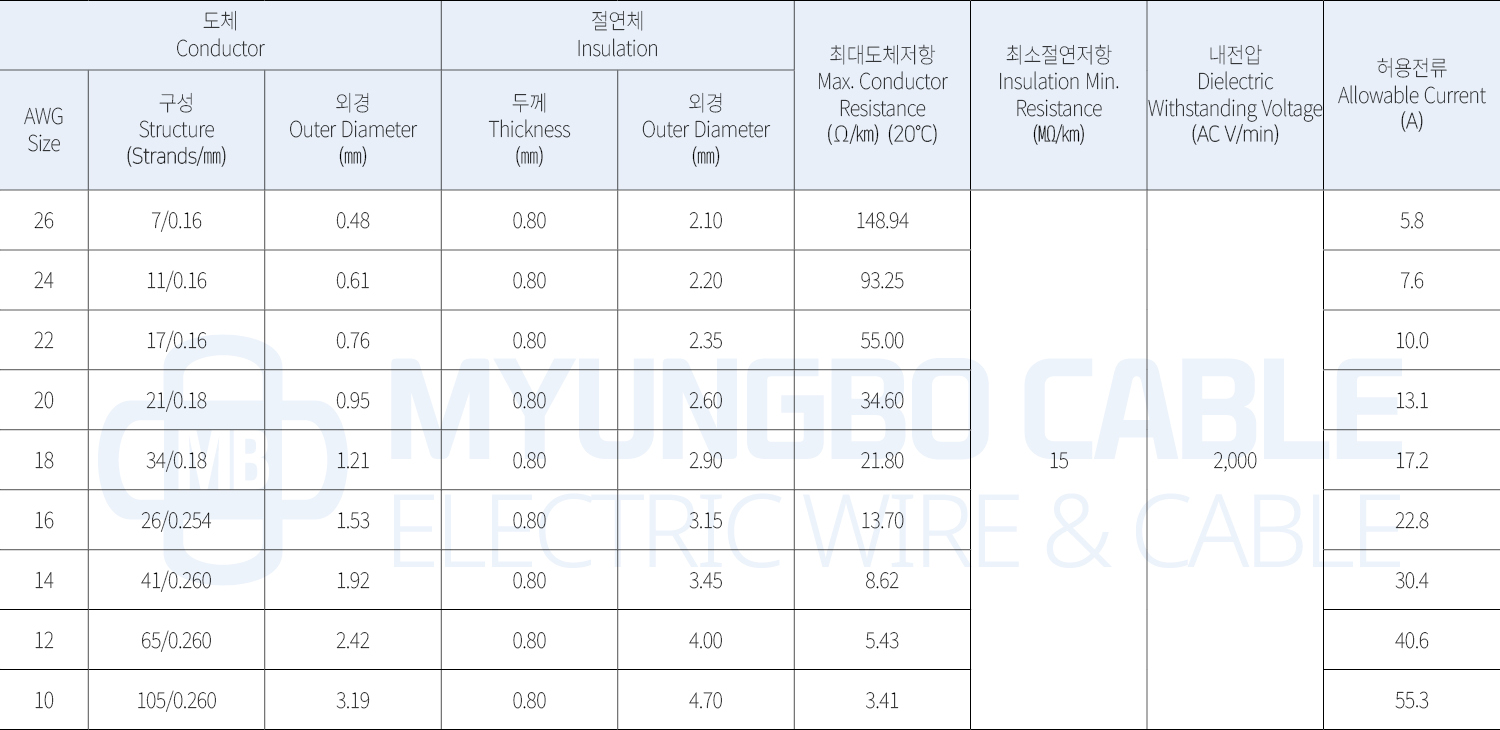

Specifications
- Kcmil
- 250-2000
- AWG
- 30-4/0
- SQ(㎟)
- 0.05-1010
- Structure
- Single
- Shield
- Voltage(V)
- 600V
- Rated Temperature(℃)
- 105℃
- Certification
-
- Material
- PVC
- Product Use
- Wiring Cable
- Characteristic
Description
