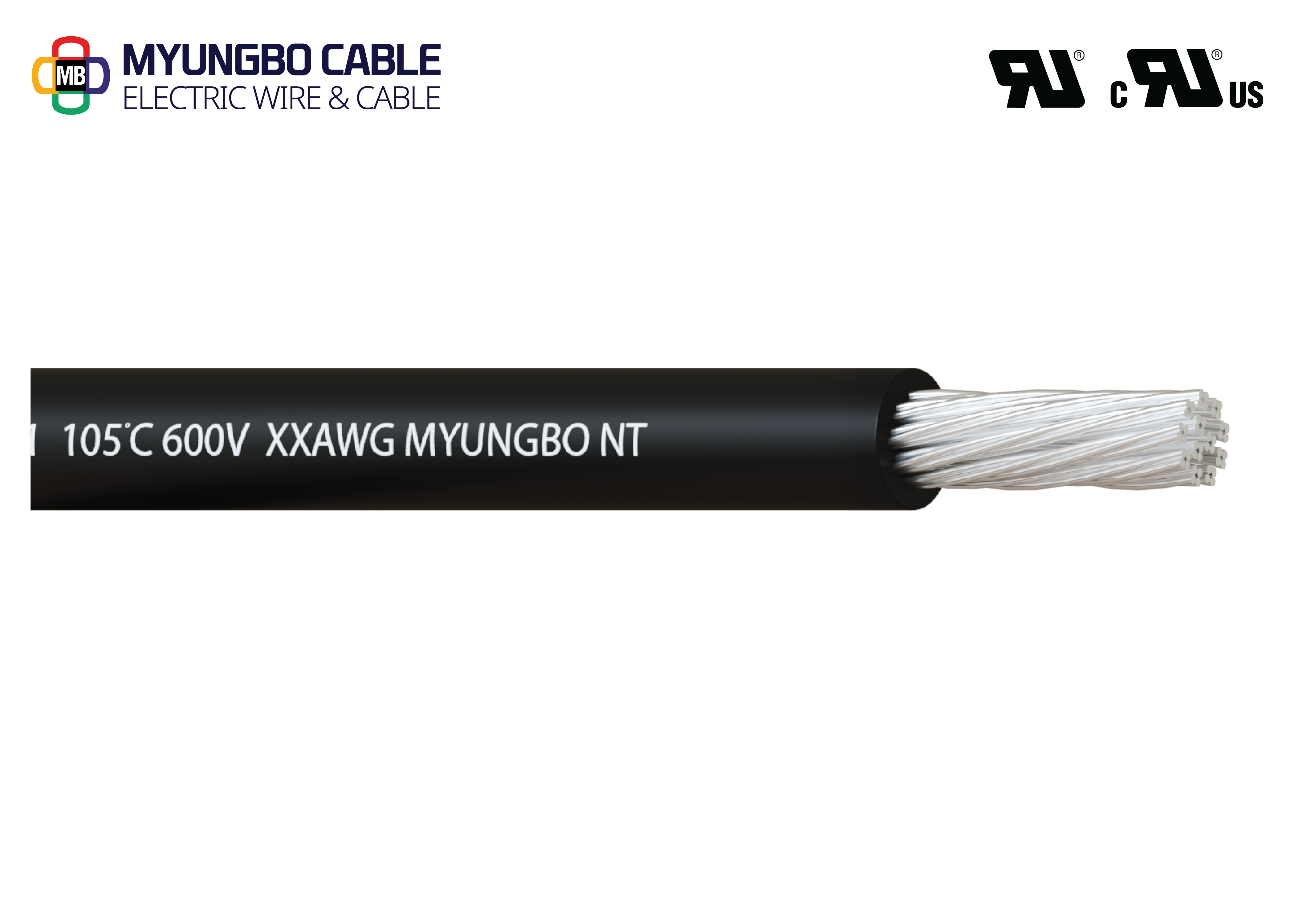

ListAWM 1283 STYLE

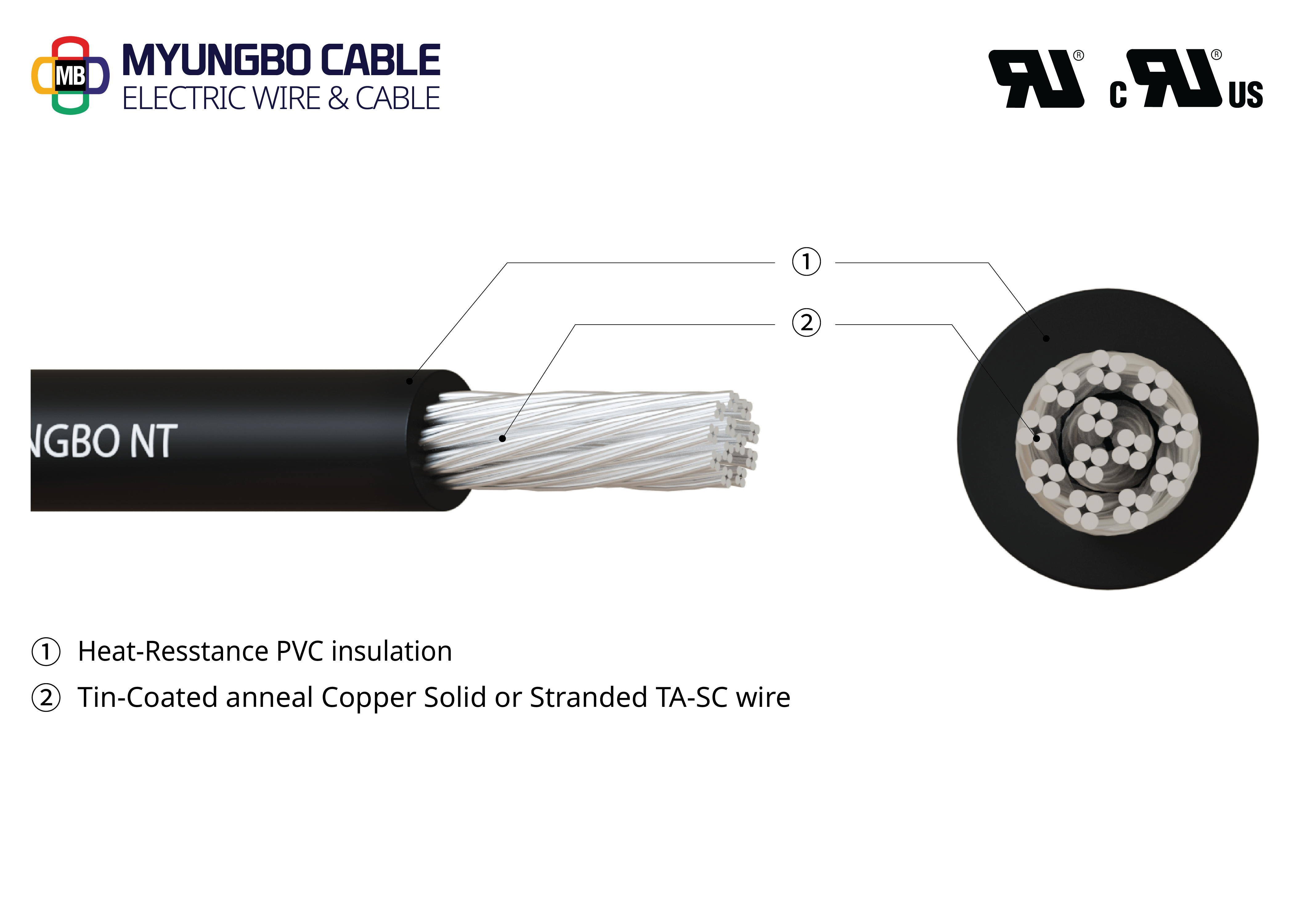

Single conductor with extruded insulation
- Standards
-
UL Subject 758
UL Standard 1581
- Product Use
-
Internal Wiring.
- Characteristic
-
- Rating Voltage: 600V
- Flammability: VW-1 / FT1 PASS
- Product Range: 8AWG - 2AWG
- Package: Rolls or Drums

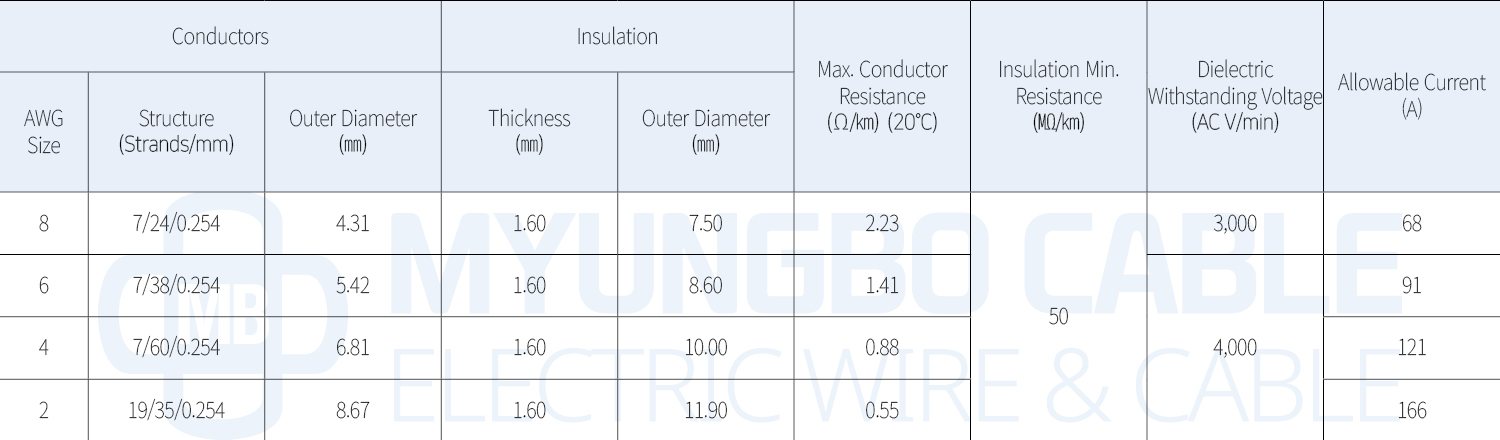

Specifications
- AWG
- 8-2
- SQ(㎟)
- 8.36-33.62
- Structure
- Single
- Shield
- Voltage(V)
- 600V
- Rated Temperature(℃)
- 105℃
- Certification
-
- Material
- PVC
- Product Use
- Characteristic
Description
