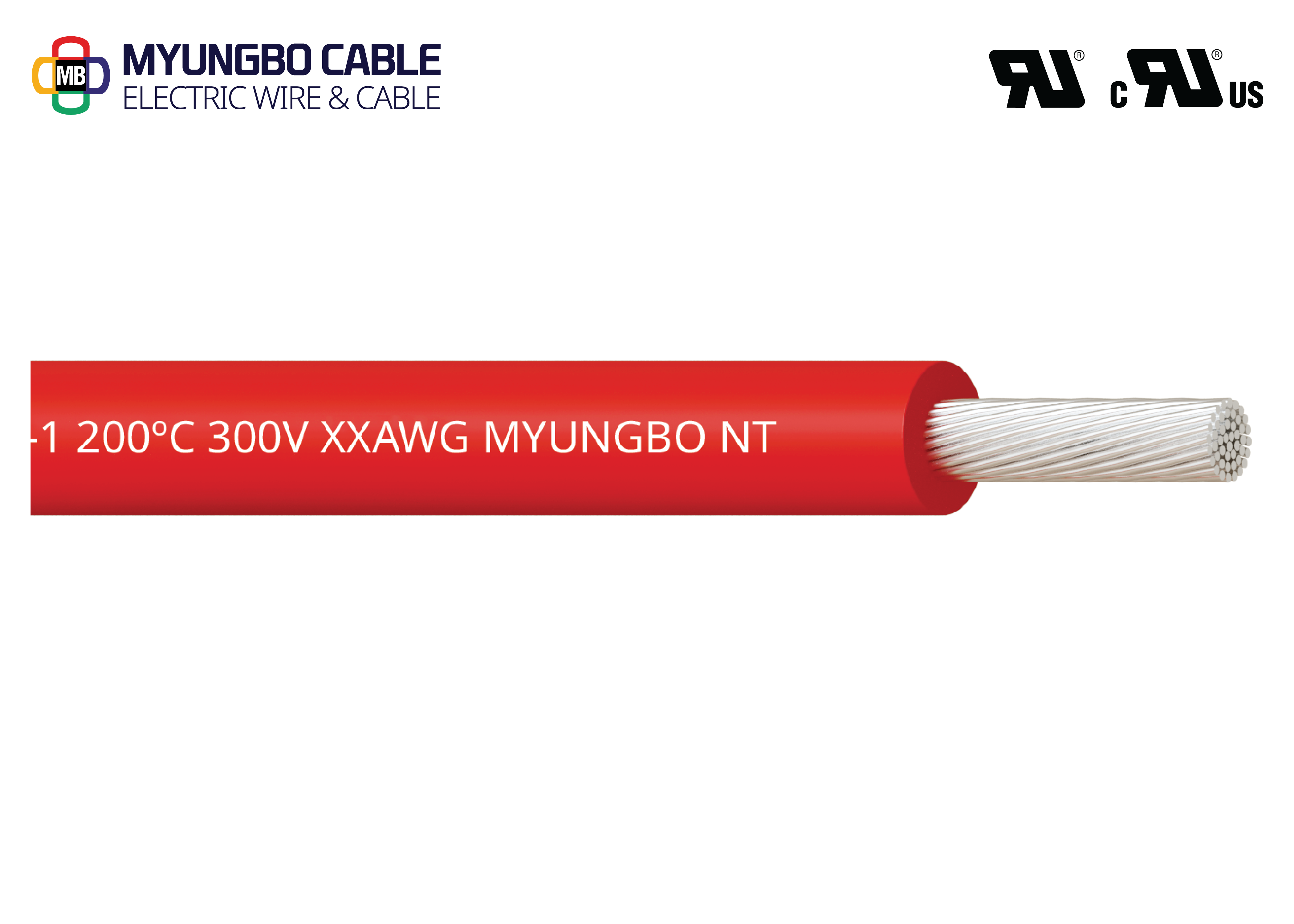

ListAWM 10109 STYLE

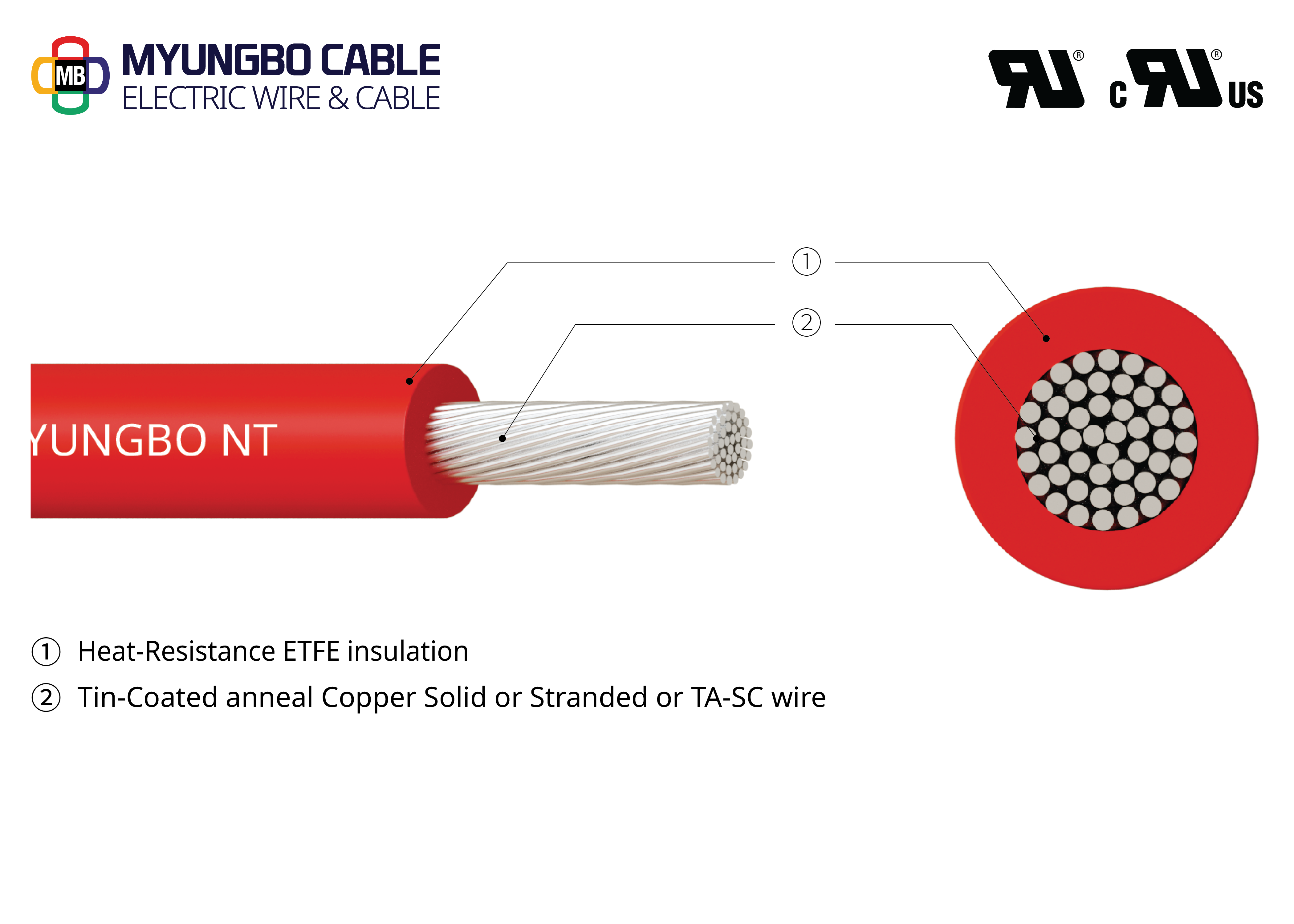

Single conductor with extruded insulation
- Standards
-
UL Subject 758
UL Standard 1581
- Product Use
-
Internal wiring of appliances.
- Characteristic
-
- Rating Voltage: 300V
- Flammability: VW-1 / FT1 PASS
- Available AWG: 36AWG ~ 4/0AWG
- Package: Rolls

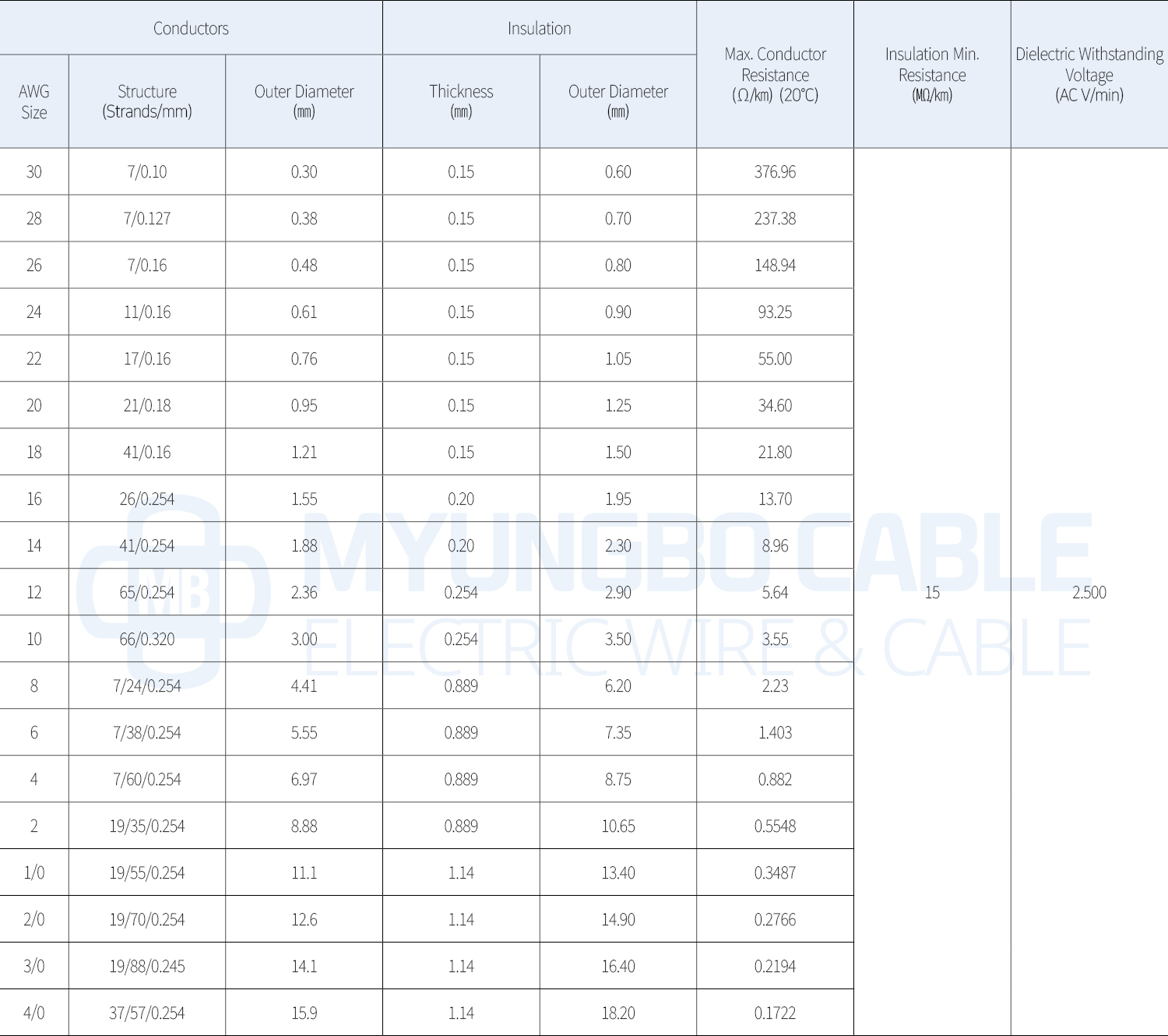

Specifications
- AWG
- 36-4/0
- SQ(㎟)
- 0.012-107
- Structure
- Single
- Shield
- Voltage(V)
- 300V
- Rated Temperature(℃)
- 200℃
- Certification
-
- Material
- Product Use
- Characteristic
Description
