ListAWM 1709 STYLE
Single conductor with extruded insulation
- Standards
-
UL Subject 758
UL Standard 1581
- Product Use
-
Internal wiring of appliances or electronic equipment.
- Characteristic
-
- Rating Voltage: 300V
- Flammability: VW-1 / FT1 PASS
- Available AWG: 32AWG - 10AWG
- Package: Rolls

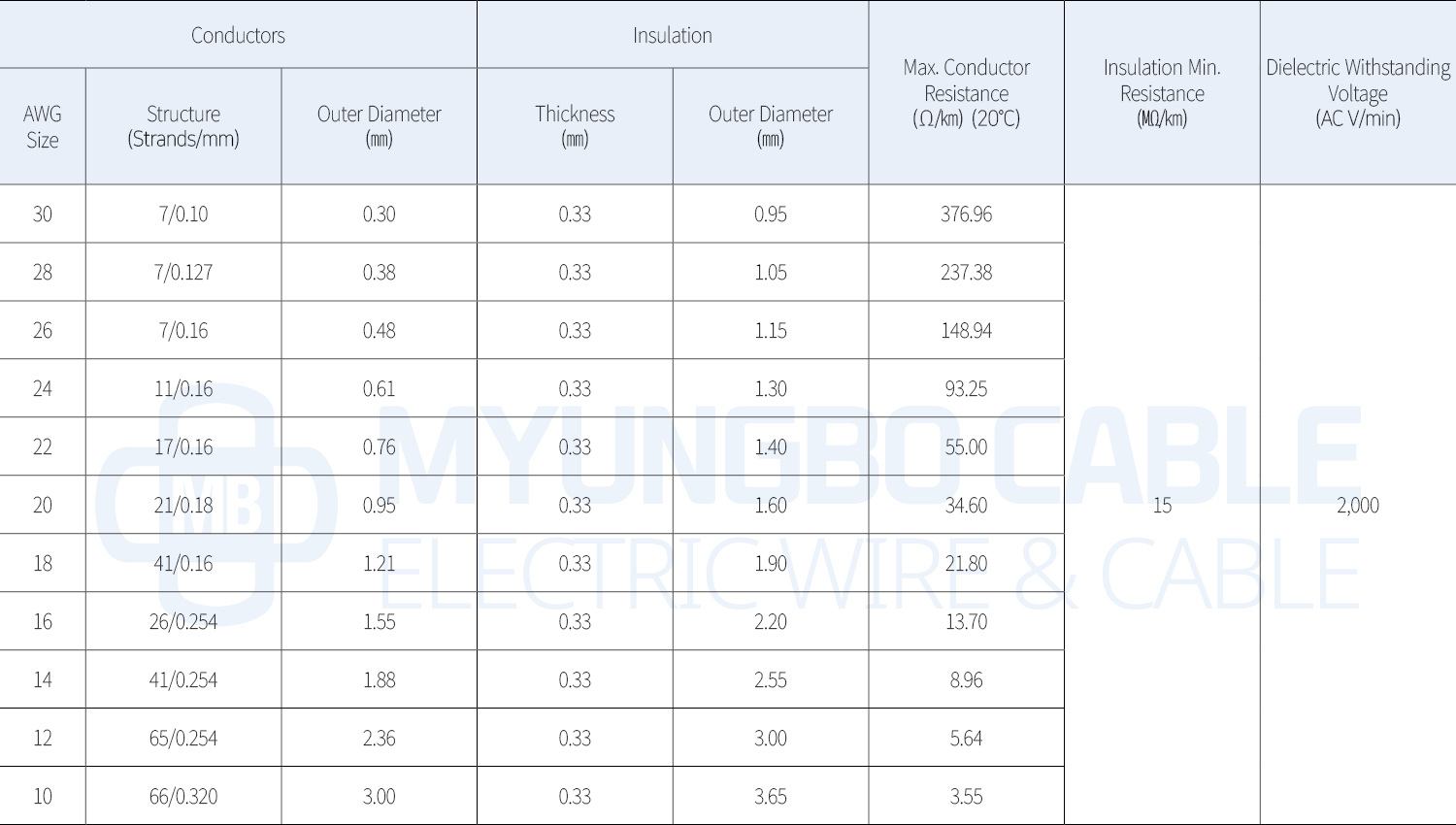

Specifications
- AWG
- 32-10
- SQ(㎟)
- 0.03-5.26
- Structure
- Single
- Shield
- Voltage(V)
- 300V
- Rated Temperature(℃)
- 200℃
- Certification
-
- Material
- Product Use
- Characteristic
Description
