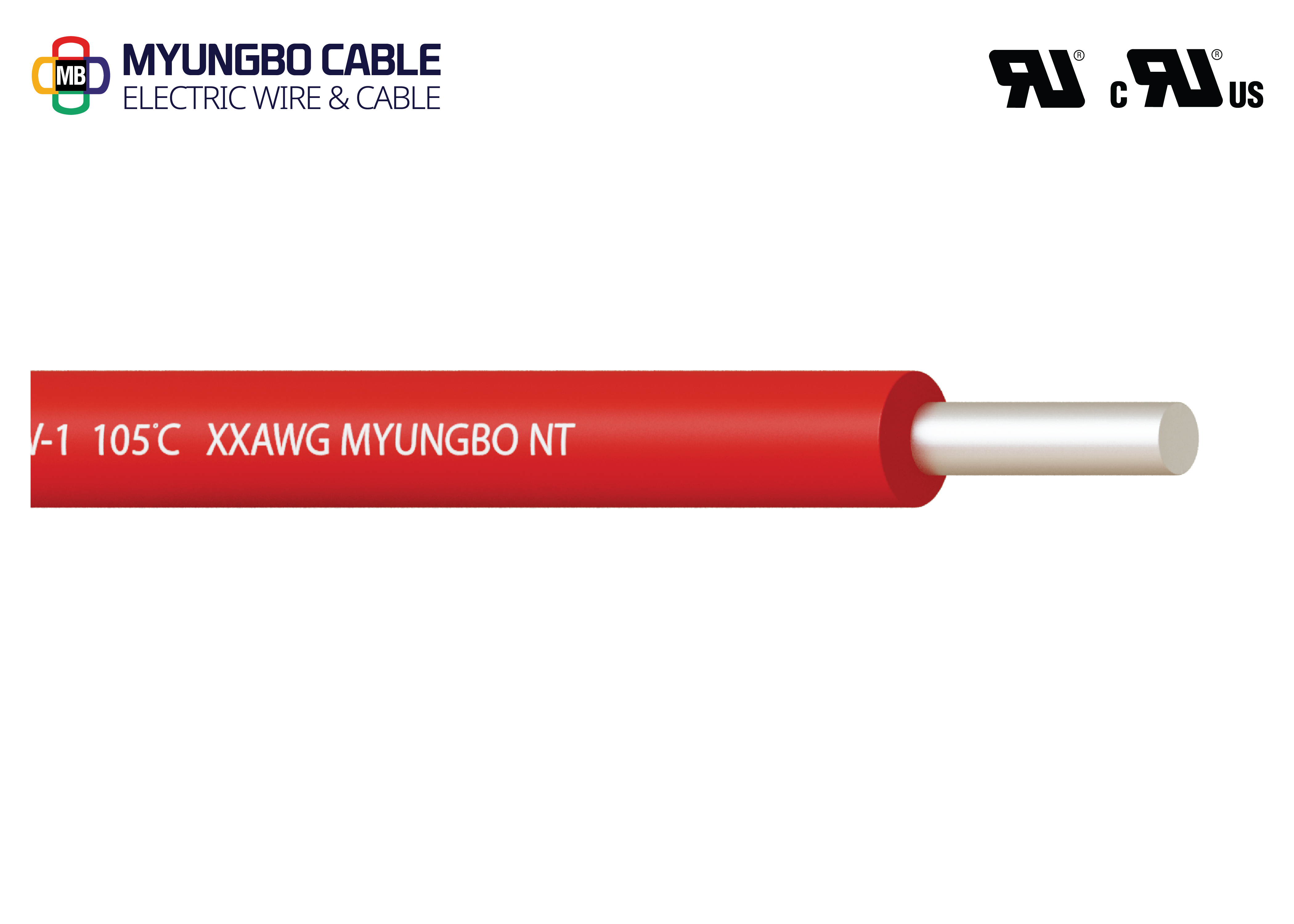

AWM 1517 STYLE

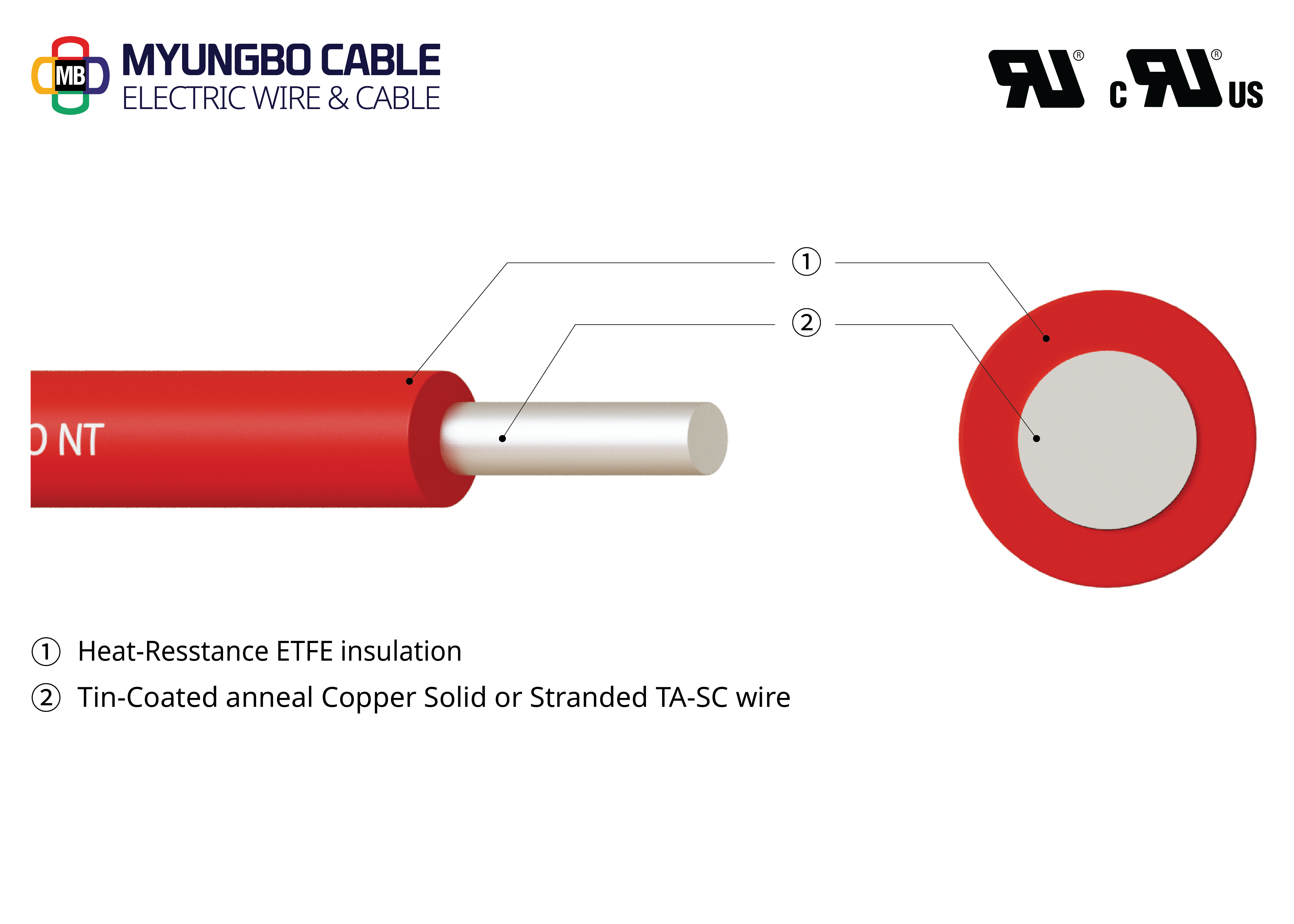

Single conductor with extruded insulation

Standards

UL Subject 758

UL Standard 1581

Product Use

Internal wiring where not subjected to movement or mechanical damage.

Characteristic
  • Rating Voltage: Not spec.
  • Flammability: VW-1 / FT1 PASS
  • Available AWG: 32AWG - 20AWG
  • Package: Rolls

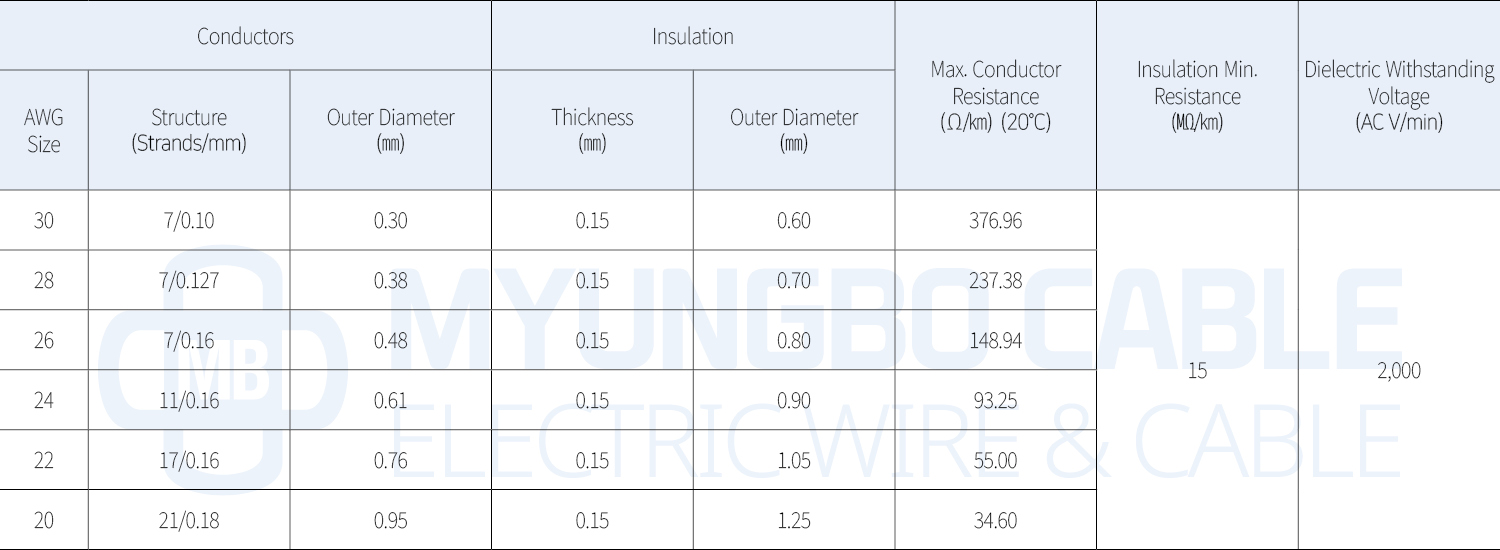

Specifications

AWG
32-20
SQ(㎟)
0.03-0.51
Structure
Single
Shield
Voltage(V)
V
Rated Temperature(℃)
105℃
Certification
Material
Product Use
Characteristic

Description
