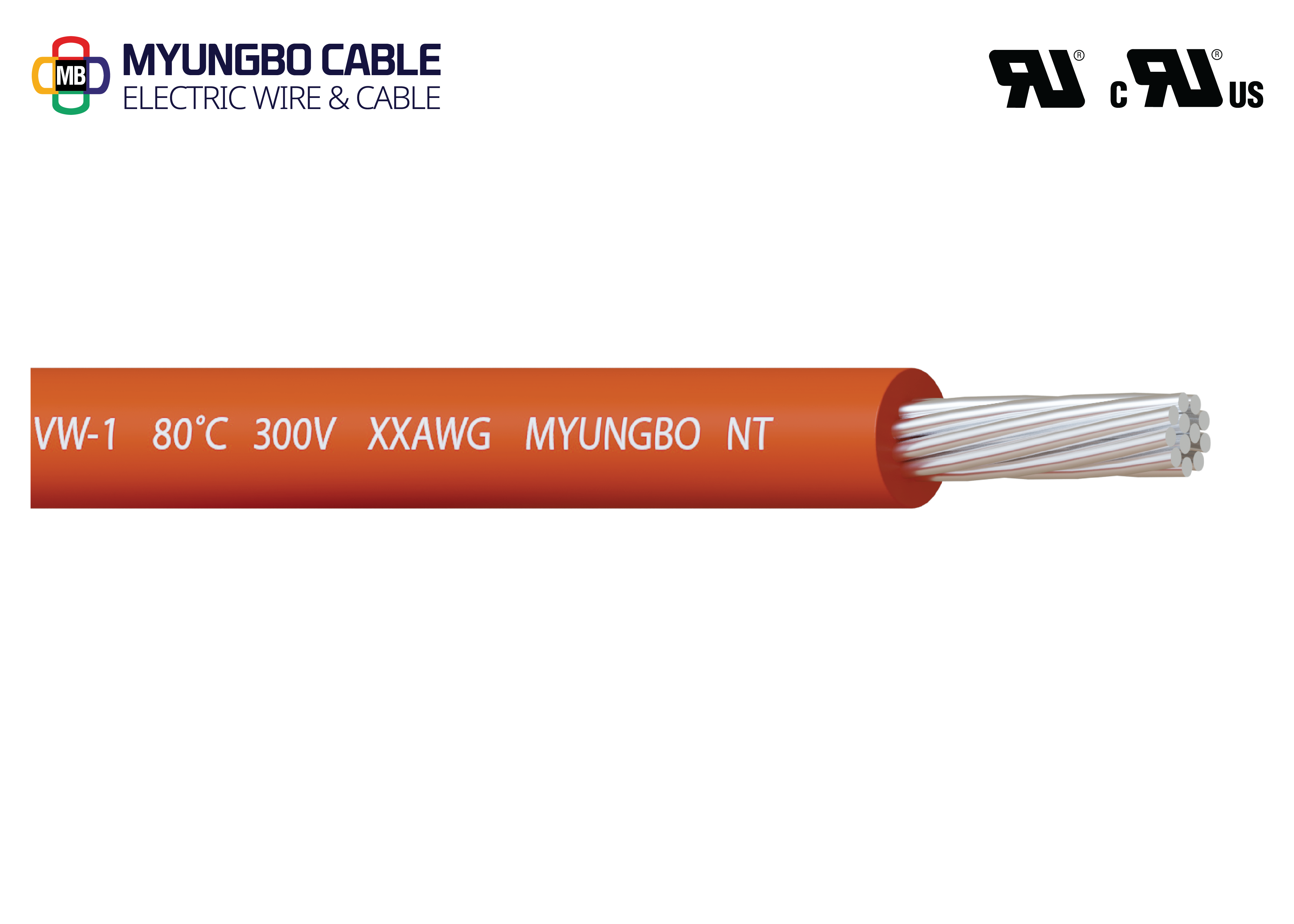

ListAWM 1007 STYLE

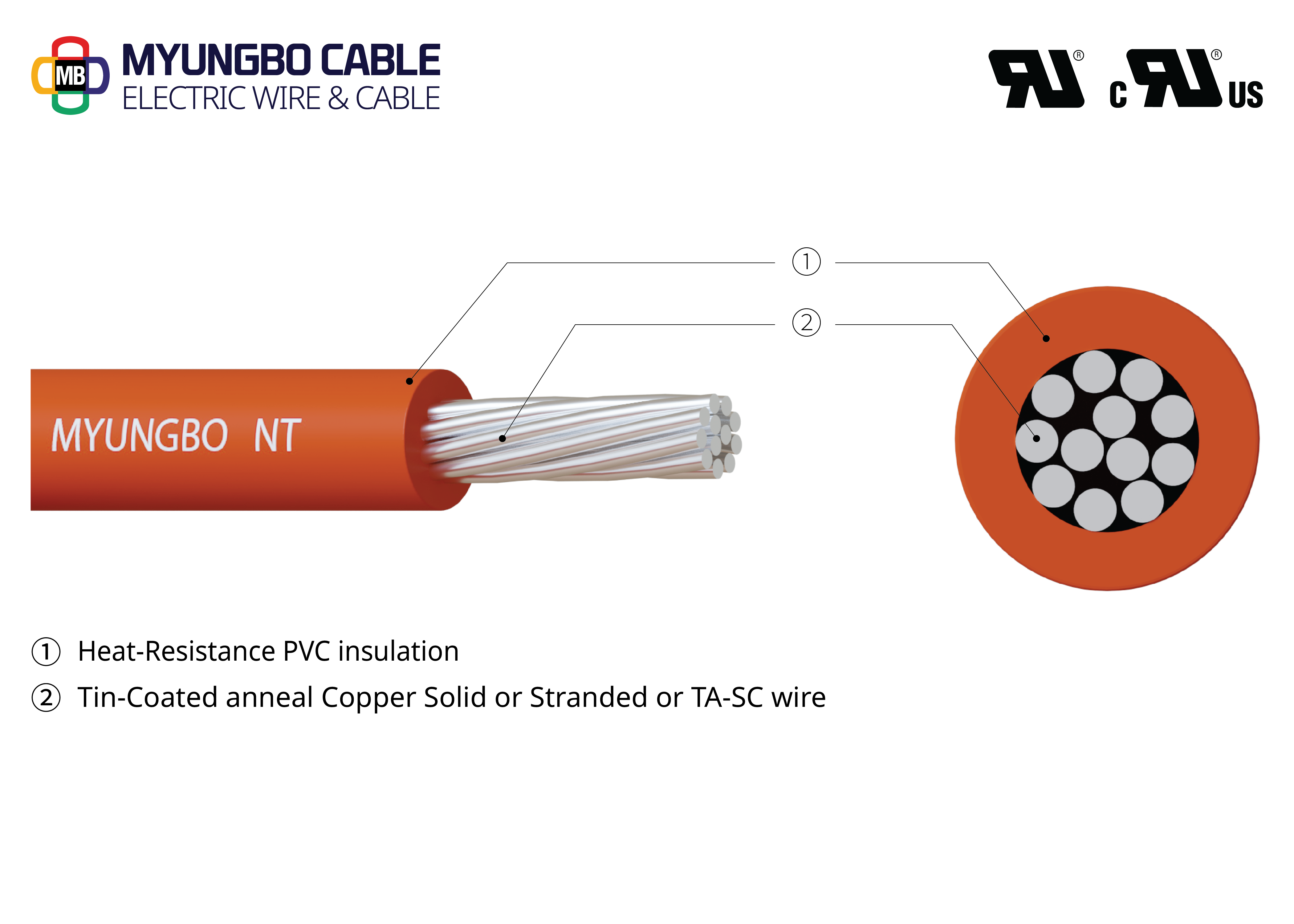

Single conductor with extruded insulation
- Standards
-
UL Subject 758
UL Standard 1581
- Product Use
-
Internal wiring of appliances
- Characteristic
-
- Rating Voltage: 300V
- Flammability: VW-1, FT1 PASS
- Available AWG: 32AWG - 16AWG
- Package: Rolls or drum

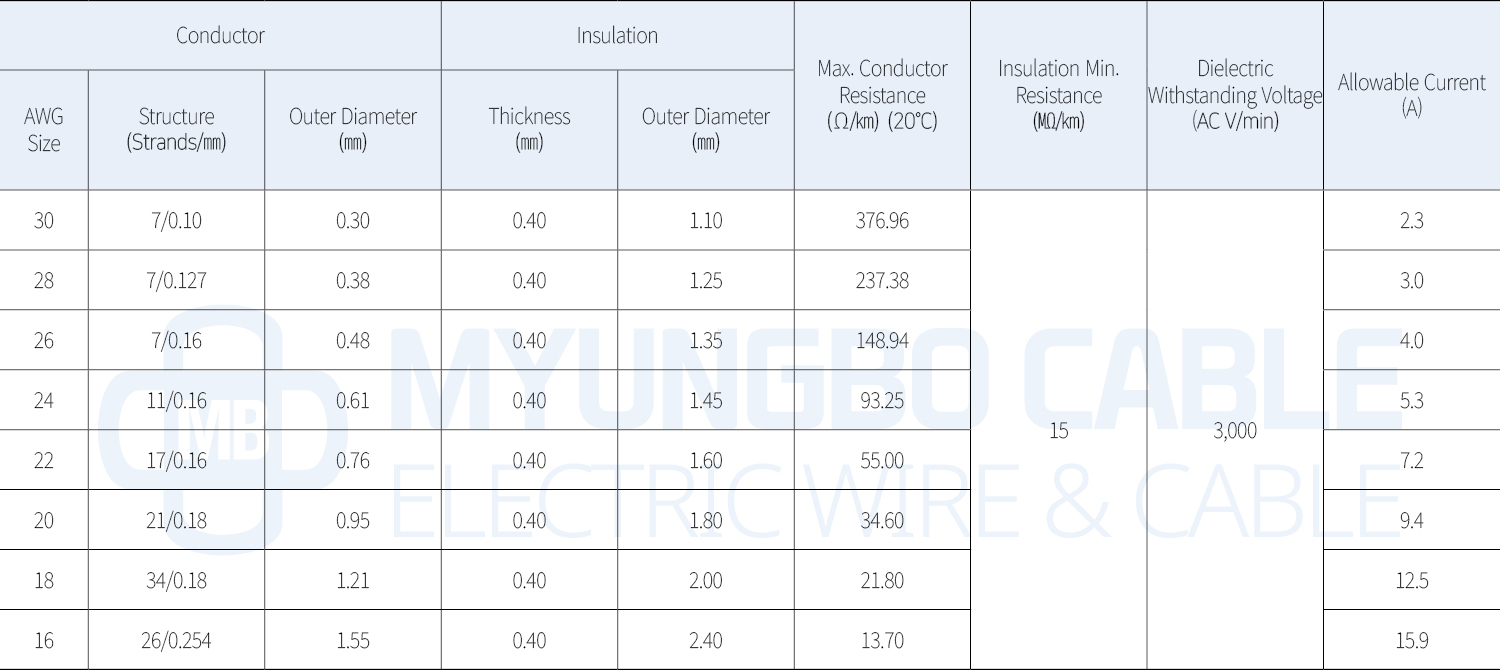

Specifications
- AWG
- 32-16
- SQ(㎟)
- 0.0324-1.31
- Structure
- Single
- Shield
- Voltage(V)
- 300V
- Rated Temperature(℃)
- 80℃
- Certification
-
- Material
- PVC
- Product Use
- Wiring Cable
- Characteristic
Description
